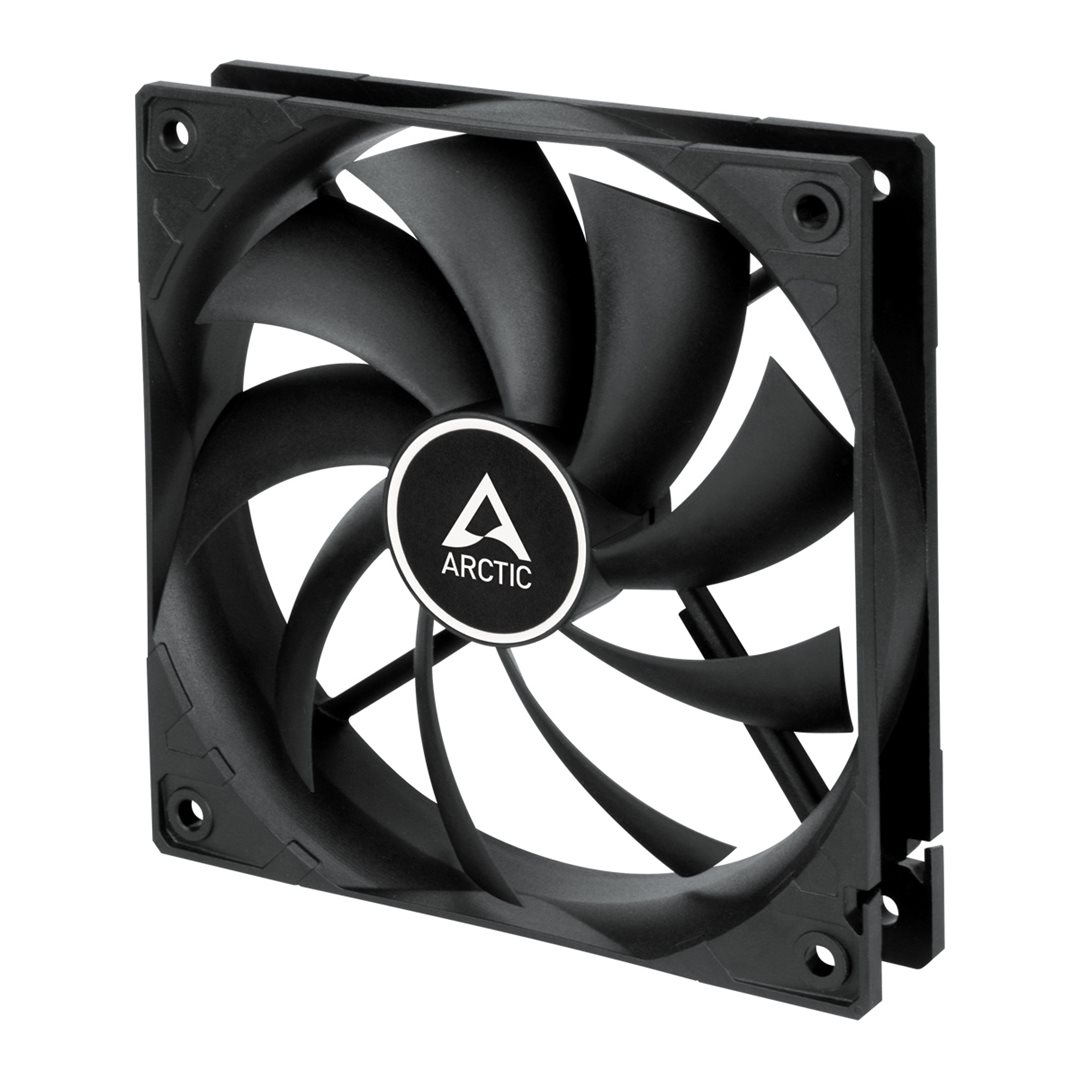

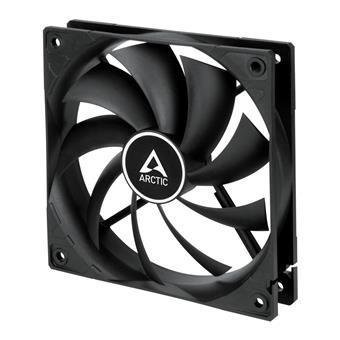

ARCTIC F12 PWM PST CO (Black)

ARCTIC F12 PWM PST CO

Kvalitní tichý ventilátor s řízením rychlosti otáček pomocí PWM signálu s patentovanou technologií PWM Sharing Technology (PST). Dvojité kuličkové ložisko zajistí bezproblémový chod a dlouhou životnost, která je až 5x delší než u ventilátorů s klasickým generickým ložiskem. Pro napájení slouží 4-pin konektor.

ZÁKLADNÍ SPECIFIKACE

Rychlost ventilátoru: 230 - 1350 ot./min.

Konektor: 4-pin PWM + 4-pin (F)

Hlučnost: 0,3 sone (± 22,5 dBA)

Průtok vzduchu: 53 CFM

Rozměry: 120 x 120 x 25 mm

Barva: černá

F12 PWM PST CO - 120mm PWM with PST Case Fan for Continuous Operation

PERFECT CASE FAN REGULATION WITH PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.

PWM SHARING TECHNOLOGY (PST) LOWERS NOISE
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.

INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

EXTENDED LIFE SPAN WITH DUAL BALL BEARING
The premium quality dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice if reliability is key. The CO case fan's life span is up to 5 times longer compared to models using a generic bearing.

TWO WAY INSTALLATION
Blow warm air out of the case

Draw cool air into your case

TECHNICAL SPECIFICATIONS & MANUAL

General data

Performance
Fan Speed: 230 - 1350 rpm
Airflow: 53 CFM/ 90.1 m3/h
Static Pressure: 1 mm H2O
Noise Level: 0.3 Sone

Fan
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Dual Ball Bearing
Operating Ambient Temperature: 0 - 40 °C

Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current/ Voltage: 0.22 A / 12 V
Cable Length: 400 mm

Size & Weight
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 109 g

Packaging
Width: 123 mm
Height: 27 mm
Length: 123 mm
Weight: 0.147 kg
